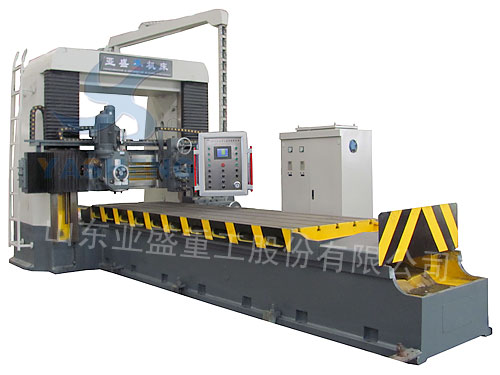

BXMQ2010-25 series of economic gantry milling machine
Introduction to machine tools Machine tool technology center brings together manywell-known domestic manufacturers engaged in gantry planer design, processing, assembly.technology, quality inspection of senior engineers, experts, the use of advanced servo controand transmission technology, machine tools with milling milling function.

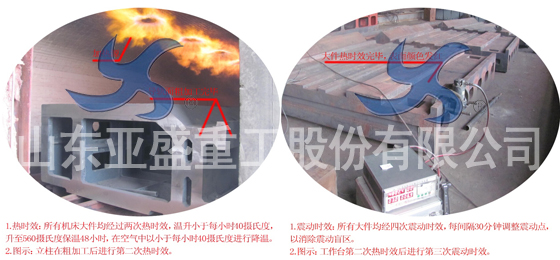

 Basic parts of the process of protection Machine basic parts from the bed, tablecolumn. Beams, the overall structure of the gantry, connecting beams and other components.Machine tools for the HT250 high-quality alloy wear-resistant cast iron. By the vibration of ahot furnace aging a vibration aging a roughing a vibration aging half of the finishing of a heatfurnace aging a vibration aging of a finishing from. To eliminate the stress in the workpiece toensure long-term operation accuracy of the machine

Main movement The use of Yasheng Heavy Industries independent research anddevelopment of four-speed planer, milling, grinding multi-function gearbox,controlled by theAC servo stepless speed control electronic control system to achieve low speed, high torquedrive (than the DC European power unit 30 to 40% ). To ensure rapid cutting efficient, low-speed milling, grinding run smoothly.
 Control System For the digital AC servo control system, including programmable PLccentral processing unit and intelligent power amplifier, to achieve the exchange of variablefrequency motor stepless speed regulation, with smooth operation, set accurate, highefficiency.
 Guide wear Rail for the "super-audio quenching" fine grinding treatment, high hardness.wear resistance, the table paste rails, the machine to maintain long-term accuracy Main features Planing head can be equipped with BJl3, BJ20, BJ25 turret. Milling head forTaiwan Gongyang technology assembly, with boring, milling, drilling and other functions.grinding head can be equipped with high-precision static grinding head and bearingperipheral grinding head and face grinding head. Configuration right angle milling headuniversal milling head and other accessories can be a fixture to achieve five-sided processing
